Tyre Couplings F200 - Industrial Tyre Couplings

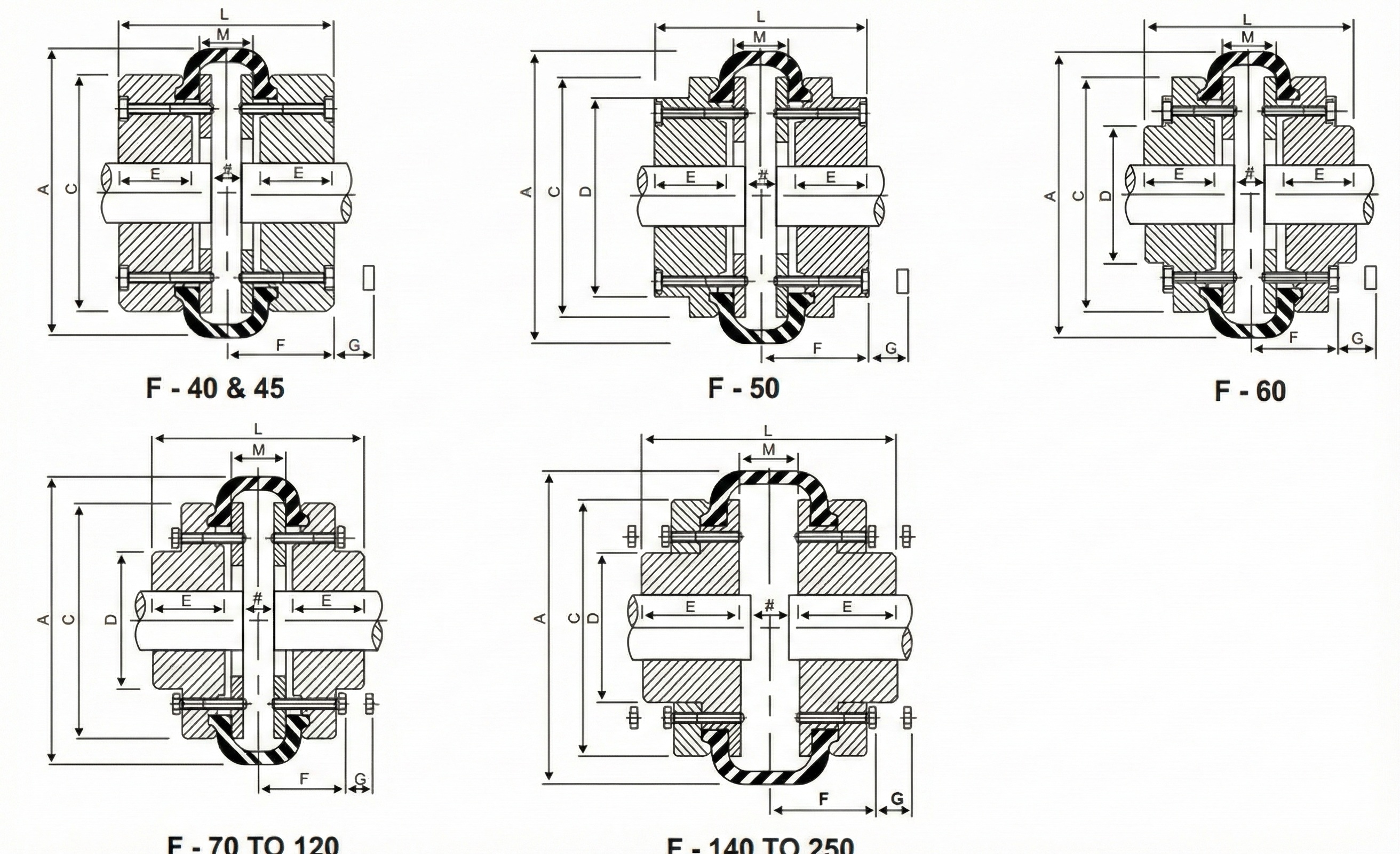

Size	TYPE F & H								TYPE B								A	C	‡ G	† M	No. of screws per flange
Size	Bush No.	Max Bore	L	D	E	F	ξ J	Approx Weight Kg *	Max Bore	Min Bore	L	D	E	F	Set Screw on key	Approx Weight Kg *	A	C	‡ G	† M	No. of screws per flange
F200	4545	110	278	266.0	114	103.0	126	182.0	150	75.00	276	266	114	103.0	M20	179.0	508.0	429	19	48	12

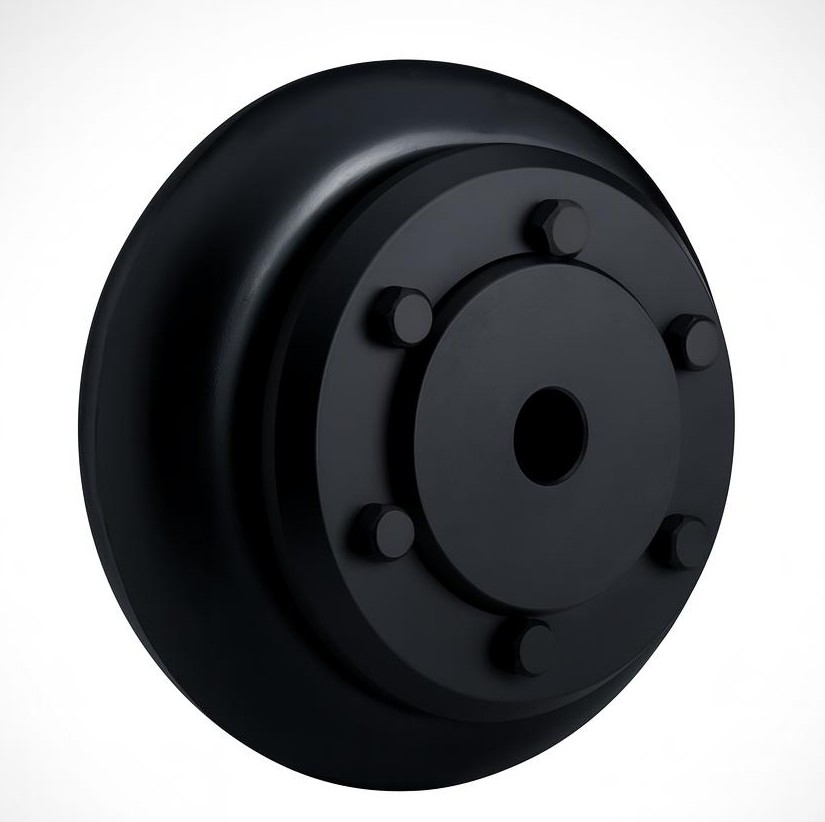

The F200 Tyre Coupling is a high-capacity flexible coupling designed for extremely heavy industrial power transmission. As one of the largest sizes in the standard tyre coupling range, the F200 is engineered to transmit massive torque loads while maintaining the essential elasticity required to absorb severe shock loads and dampen vibrations in critical machinery.

Enquire Now

Key Specifications

The F200 is built for extreme performance in harsh environments. Below are the standard technical specifications:

Parameter	Value
Model Size	F200
Nominal Torque	9,325 Nm
Max. Torque (Peak)	23,508 Nm
Max. Rotational Speed	1,300 RPM
Power Rating (at 100 RPM)	~97.6 kW
Taper Lock Bush Size	4545
Max. Bore Size	110 mm (with 4545 Bush) / 180 mm (Max with B Flange)
Misalignment Capability	4° Angular \| 5.3mm Parallel \| 6.6mm End Float

How It Works

The F200 utilizes a massive, reinforced rubber tyre element to transmit torque between two heavy steel flanges.

Torque Transmission: The driving flange rotates the flexible tyre, which transfers the immense rotational force to the driven flange through shear stress. This non-rigid connection eliminates metal-to-metal wear and electrically isolates the shafts.
Shock Load Damping: In high-impact applications like SAG mills or jaw crushers, the F200 tyre twists to absorb kinetic energy from sudden load spikes, acting as a buffer that prevents catastrophic shaft breakage.
Misalignment Compensation: The F200 allows for substantial shaft movement—accommodating up to 5.3mm of parallel offset—which is critical for large machinery that experiences thermal expansion or foundation settling.

Benefits of F200 Couplings

Massive Power Capacity: Capable of transmitting nearly 1,400 kW at standard motor speeds (1440 RPM), making it suitable for the largest industrial drives.
"Replace-in-Place": The split-tyre element allows for replacement without moving the heavy motor or driven machine, a critical feature for reducing downtime on massive equipment.
Lubrication Free: Requires no grease or oil, ensuring low-maintenance operation and eliminating contamination risks in dusty mining environments.
Vibration Isolation: The elastomeric element effectively isolates torsional vibration, protecting sensitive downstream gears and bearings from fatigue.
Safety: In the event of a catastrophic jam, the tyre will tear sacrificially, disconnecting the drive and saving the expensive capital equipment from destruction.

Typical Applications

The F200 is widely used in heavy industry where reliability is paramount:

Mining & Aggregates: Main drives for large ball mills, rod mills, and primary crushers.
Bulk Handling: Overland conveyor main drives and heavy-duty bucket wheels.
Fluid Power: Massive slurry pumps and industrial fans.
Metal Processing: Steel rolling mill drives and heavy coilers.
Marine: Main propulsion drives and large dredge pumps.

Summary

The F200 Tyre Coupling is the ultimate solution for heavy-duty power transmission. With a nominal torque rating of 9,325 Nm and the ability to absorb significant shock loads, it provides unmatched protection for high-value industrial assets. Whether driving a massive mill or a critical conveyor, the F200 offers the strength, flexibility, and ease of maintenance required to keep heavy industry running.
