L 35 - AXIS GS Couplings

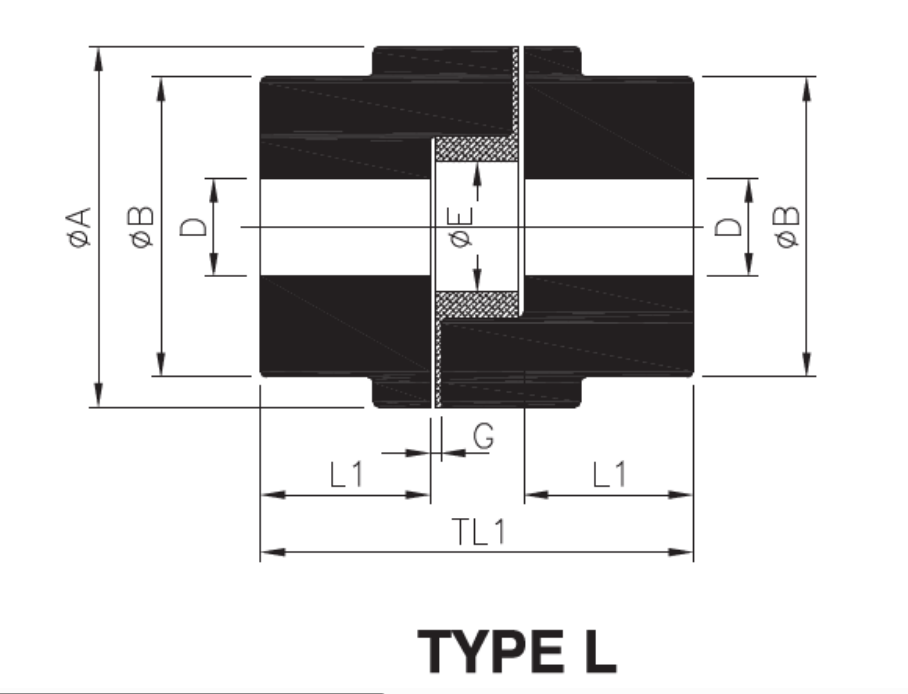

Coupling		Power Rating						Pilot Drill Size	Max. Bore D	ØA		Length thru' Bore L1	ØB	Gap G	ØE	DBSE	Overall Length TL1
Coupling		Synthetic Rubber		Polyurethane		H-Trans				SW/ RRS	L
Type	Size	Rated Torque (Nm)	kW @ 100 rpm	Rated Torque (Nm)	kW @ 100 rpm	Rated Torque (Nm)	kW @ 100 rpm			SW/ RRS	L
L	35	0.38	0.004	-	-	-	-	-	10	-	16	6.5	16	1	-	-	21

The L 35 Jaw Coupling serves as the foundational entry in this technical series, specifically engineered for fractional horsepower applications where space is at a premium. Despite its small stature, it utilizes the same rugged "fail-safe" engineering found in larger industrial models. This coupling consists of two precision-machined hubs and a specialized elastomeric spider that fits snugly between them. By utilizing a compression-style power transfer, the L 35 effectively isolates the motor from the driven load, preventing the transmission of heat and electrical currents across the shafts.

Enquire Now

Key Specifications

The Size 35 is the most compact coupling in the series, designed for precision and light-duty applications. Its specific technical metrics include:

Rated Torque: 0.38 Nm using Synthetic Rubber.
Power Capacity: 0.004 kW at 100 rpm.
Max Bore (D): Can be machined up to a 10mm diameter.
Compact Dimensions: An overall length (TL1) of 21mm and an outer diameter (ØB) of 16mm.
Operating Gap (G): Requires a 1mm clearance between hubs for proper flexibility.

How It Works

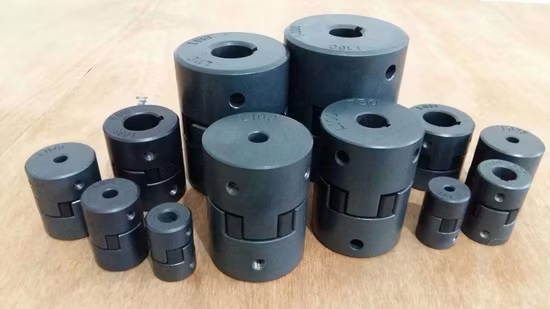

The L 35 coupling utilizes a simple but effective three-piece design to transmit power between small shafts:

Jaw Meshing: Two metal hubs with protruding jaws interlock with a central elastomeric "spider" insert.
Compression Transmission: Power is transferred as the spider legs are compressed between the jaws, eliminating metal-to-metal contact.
Misalignment Handling: The flexible spider allows the coupling to absorb minor angular and parallel shaft misalignments during rotation.

Benefits

The L 35 model provides several advantages for small-scale mechanical assemblies:

Fail-Safe Design: If the spider fails, the jaws will lock, preventing a total loss of drive in critical situations.
Vibration Damping: The rubber insert absorbs high-frequency vibrations, protecting sensitive equipment like encoders.
No Lubrication: The system is maintenance-free, requiring no grease or oil throughout its service life.
Zero Maintenance: Aside from occasional inspection of the spider, the coupling requires no ongoing attention.

Applications

Because of its small footprint, the L 35 is commonly used in the following areas:

Stepper Motors: Ideal for NEMA 11 and NEMA 14 motor applications.
Medical Equipment: Used in small laboratory pumps and diagnostic machines.
Precision Instruments: Connecting control knobs or sensors to internal shafts.
Office Automation: Found in paper handling systems for printers and photocopiers.

Summary

The L 35 Jaw Coupling is the ideal entry-level solution for low-torque requirements (0.38 Nm). It offers the smallest physical profile in the technical table, ensuring that even the most space-constrained designs can benefit from the vibration damping and shaft protection of a flexible jaw system.
