Full Gear Coupling FGC 5/ FGC 105 Dealer in India

Full Gear Coupling FGC 5/ FGC 105 - Gear Coupling

Coupling No / Size	Power at 100 rpm (kW)	Maximum Torque (Nm)	Hub Bore (mm)			Dimensions (mm)

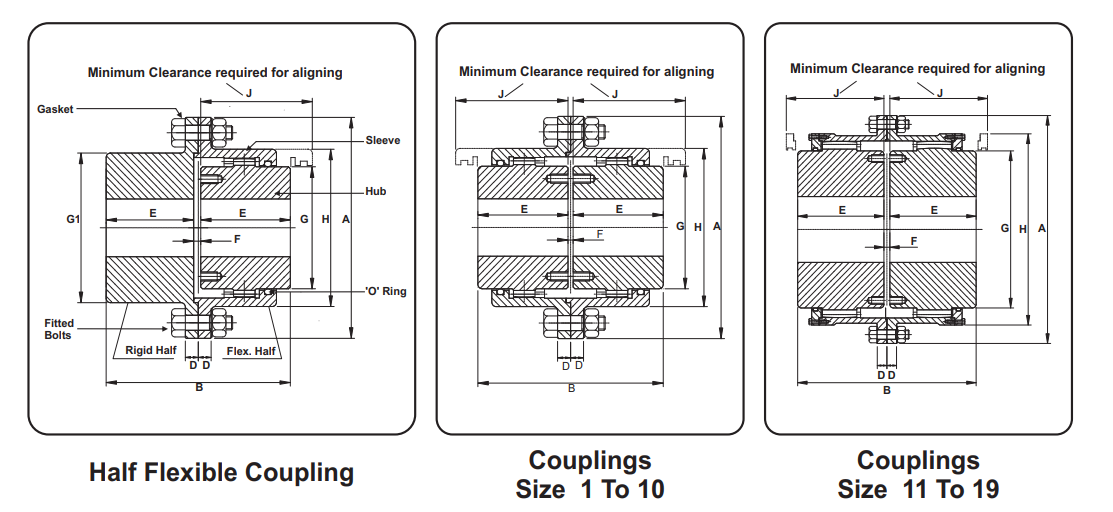

Coupling No / Size	Power at 100 rpm (kW)	Maximum Torque (Nm)	Min.	Max Flex	Max Rigid	A	B	D	E	F	G	G1	H	J
FGC 5	150	14320	46	120	130	290	240	25	115	10	166	185	204	140

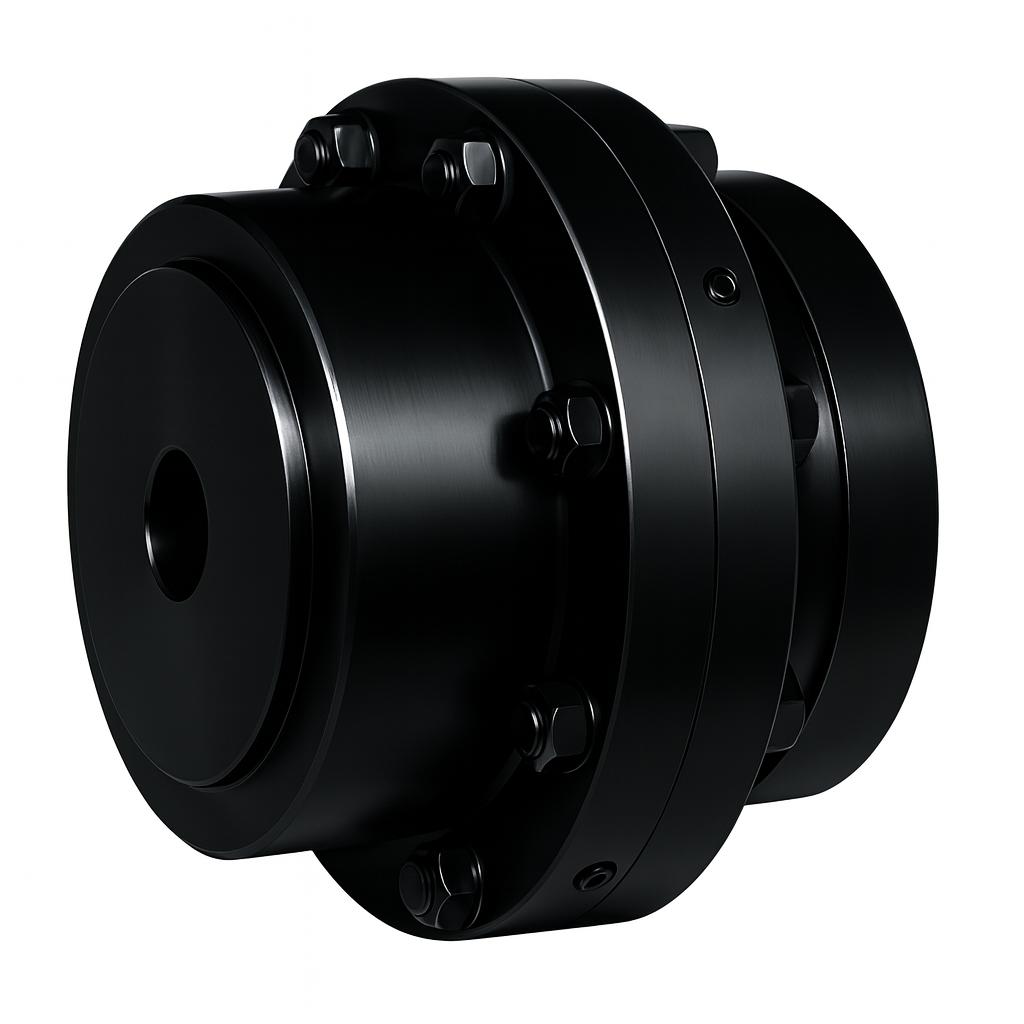

The FGC 5 Full Gear Coupling is a heavy-duty mechanical coupling designed for high torque transmission in demanding industrial environments. Built using hardened alloy steel and precision-machined gear teeth, it provides excellent durability, smooth operation, and reliable compensation for shaft misalignment. FGC 5 is suitable for continuous and high-load applications.

Enquire Now

Benefits of FGC 5

High Torque Capacity: Engineered for heavy-duty power transmission.
Strong Alloy Steel Build: Offers long service life even in harsh industrial conditions.
Handles Misalignment: Supports angular, parallel, and axial misalignments effectively.
Smooth & Low Vibration: Reduces stress on machinery and improves operational stability.
Low Maintenance: Requires simple lubrication with minimal service downtime.
