Full Gear Coupling FGC 4/ FGC 104 Dealer in India

Full Gear Coupling FGC 4/ FGC 104 - Gear Coupling

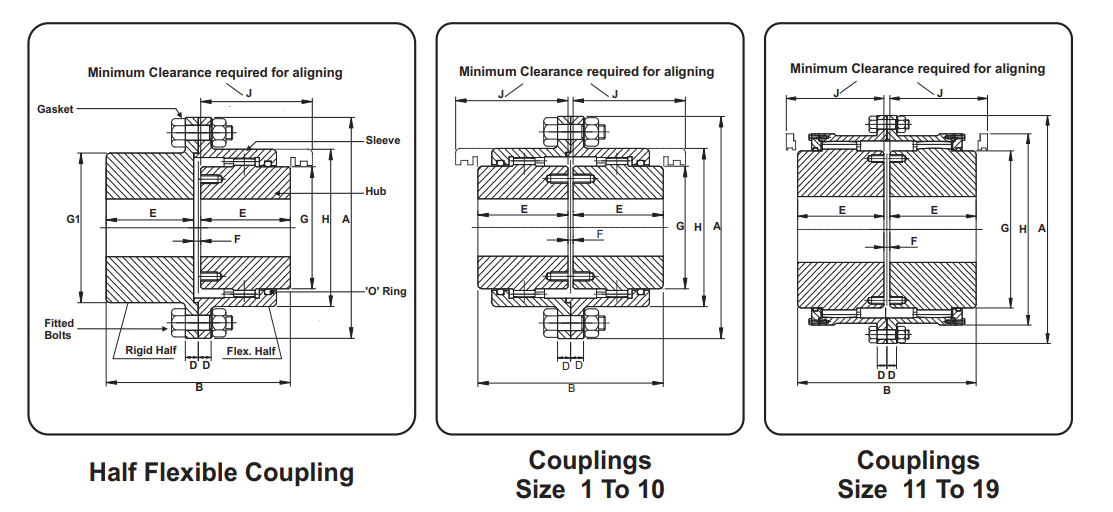

Coupling No / Size	Power at 100 rpm (kW)	Maximum Torque (Nm)	Hub Bore (mm)			Dimensions (mm)
Coupling No / Size	Power at 100 rpm (kW)	Maximum Torque (Nm)	Min.	Max Flex	Max Rigid	A	B	D	E	F	G	G1	H	J
FGC 4	96.5	9220	40	100	110	250	215	20	105	5	138	160	178	125

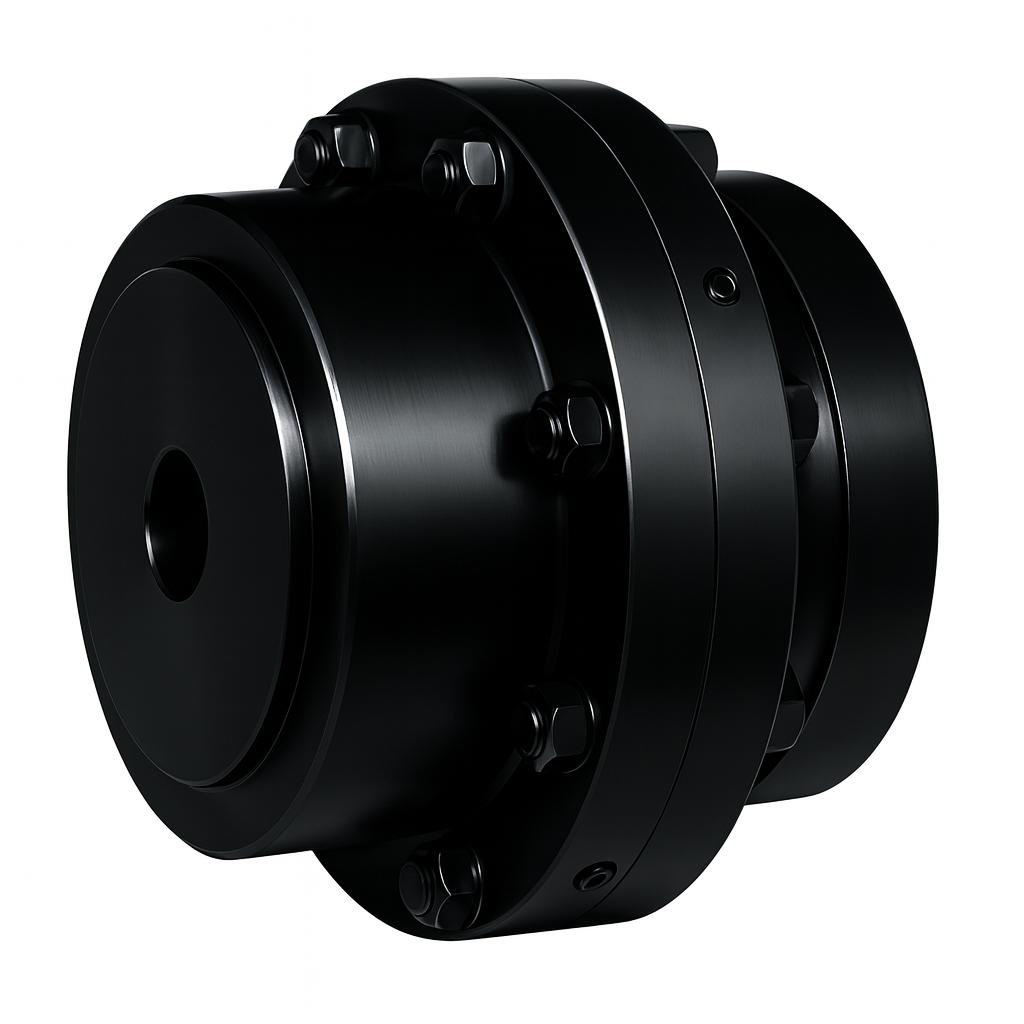

The FGC 4 Full Gear Coupling is a robust and high-torque mechanical coupling designed for reliable power transmission between rotating shafts. Manufactured from hardened alloy steel with precision-machined gear teeth, it delivers excellent strength, smooth operation, and long service life. FGC 4 is ideal for demanding industrial applications where durability and alignment flexibility are essential.

Enquire Now

Benefits of FGC 4

High Torque Handling: Suitable for heavy-duty machinery and continuous industrial operations.
Strong & Durable: Built from high-grade alloy steel for reliable long-term performance.
Misalignment Compensation: Effectively handles angular, parallel, and axial misalignments.
Low Noise & Vibration: Ensures smooth running and improved equipment lifespan.
Low Maintenance: Requires simple lubrication and minimal servicing.
