Full Gear Coupling FGC 3/ FGC 103 Dealer in India

Full Gear Coupling FGC 3/ FGC 103 - Gear Coupling

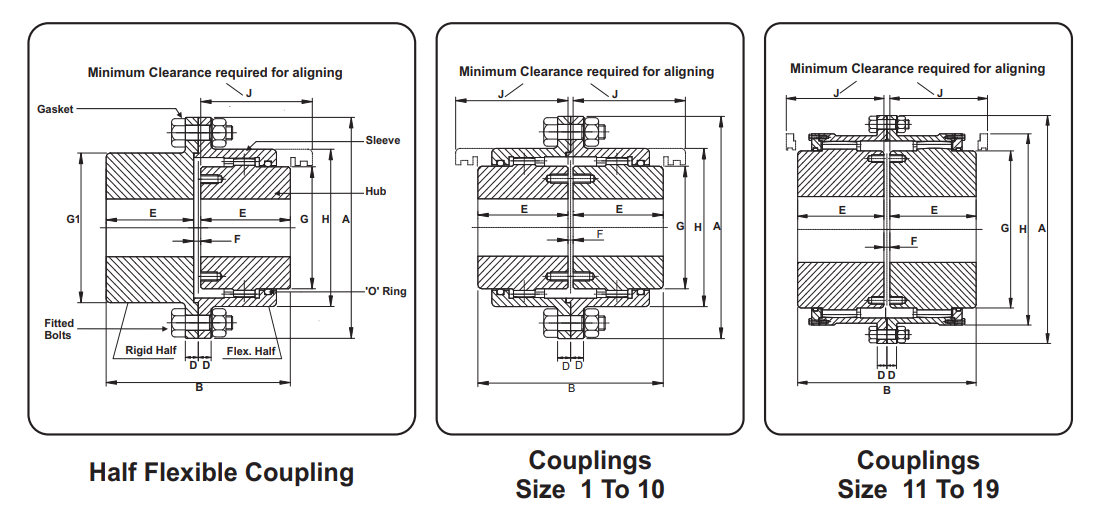

Coupling No / Size	Power at 100 rpm (kW)	Maximum Torque (Nm)	Hub Bore (mm)			Dimensions (mm)
Coupling No / Size	Power at 100 rpm (kW)	Maximum Torque (Nm)	Min.	Max Flex	Max Rigid	A	B	D	E	F	G	G1	H	J
FGC 3	51.5	4920	30	75	90	220	175	20	85	5	107	130	150	105

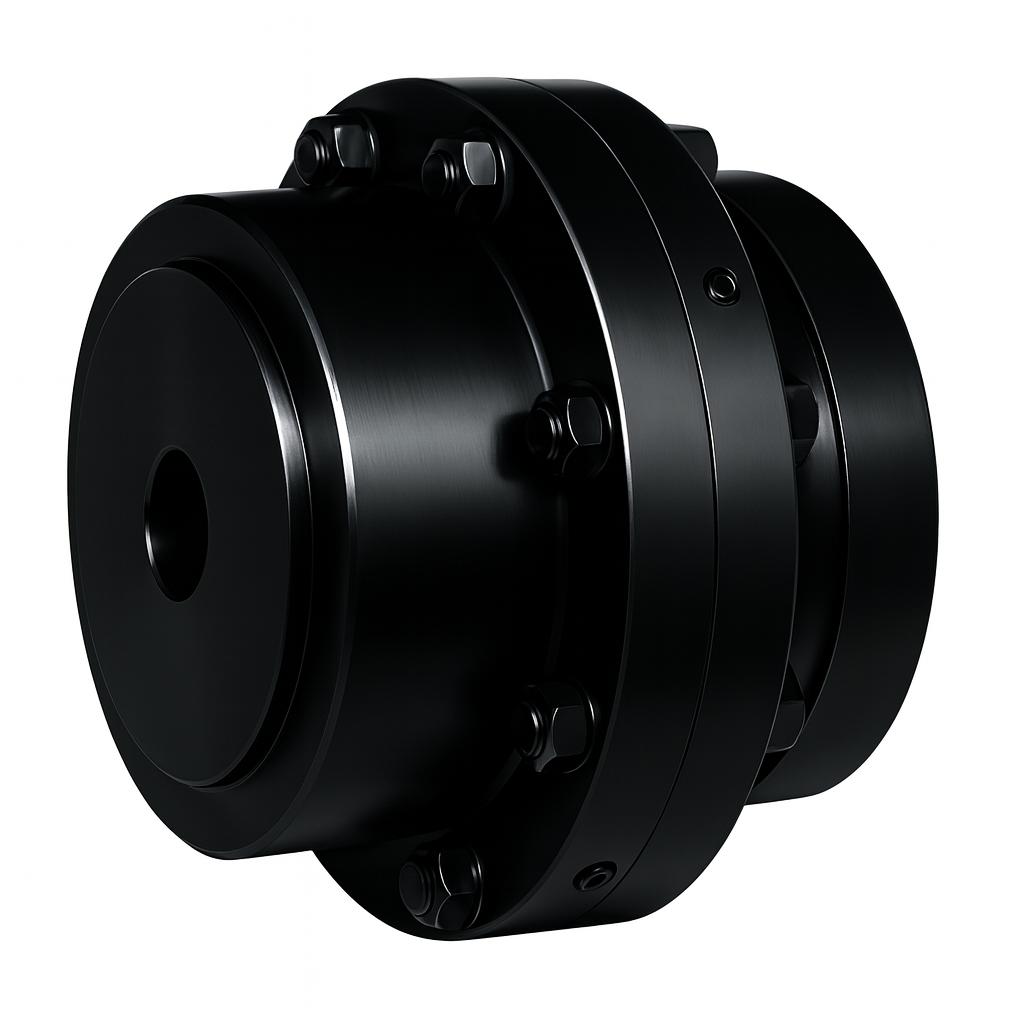

The FGC 3 Full Gear Coupling is a heavy-duty, high-torque coupling designed for smooth and reliable power transmission between rotating shafts. Made with high-grade alloy steel and precision-cut gear teeth, it provides excellent durability, misalignment compensation, and long service life in demanding industrial applications.

Enquire Now

Benefits of FGC 3 Gear Coupling

High Torque Capacity: Ideal for medium to heavy-duty machinery.
Rugged Construction: Manufactured from hardened alloy steel for long-term reliability.
Misalignment Handling: Compensates for angular, parallel, and axial shaft misalignment.
Low Noise & Vibration: Smooth running improves equipment performance.
Low Maintenance: Requires simple lubrication for long operational life.
