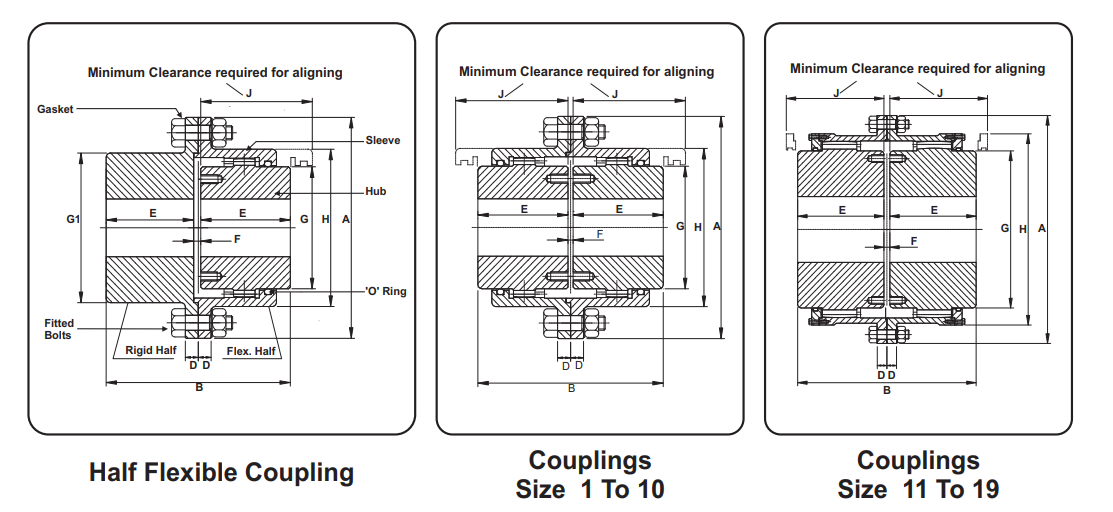

| Coupling No / Size | Power at 100 rpm (kW) | Maximum Torque (Nm) | Hub Bore (mm) | Dimensions (mm) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Min. | Max Flex | Max Rigid | A | B | D | E | F | G | G1 | H | J | ||||
| FGC 2 | 28.5 | 2720 | 20 | 60 | 75 | 185 | 145 | 17 | 70 | 5 | 85 | 110 | 125 | 85 | |

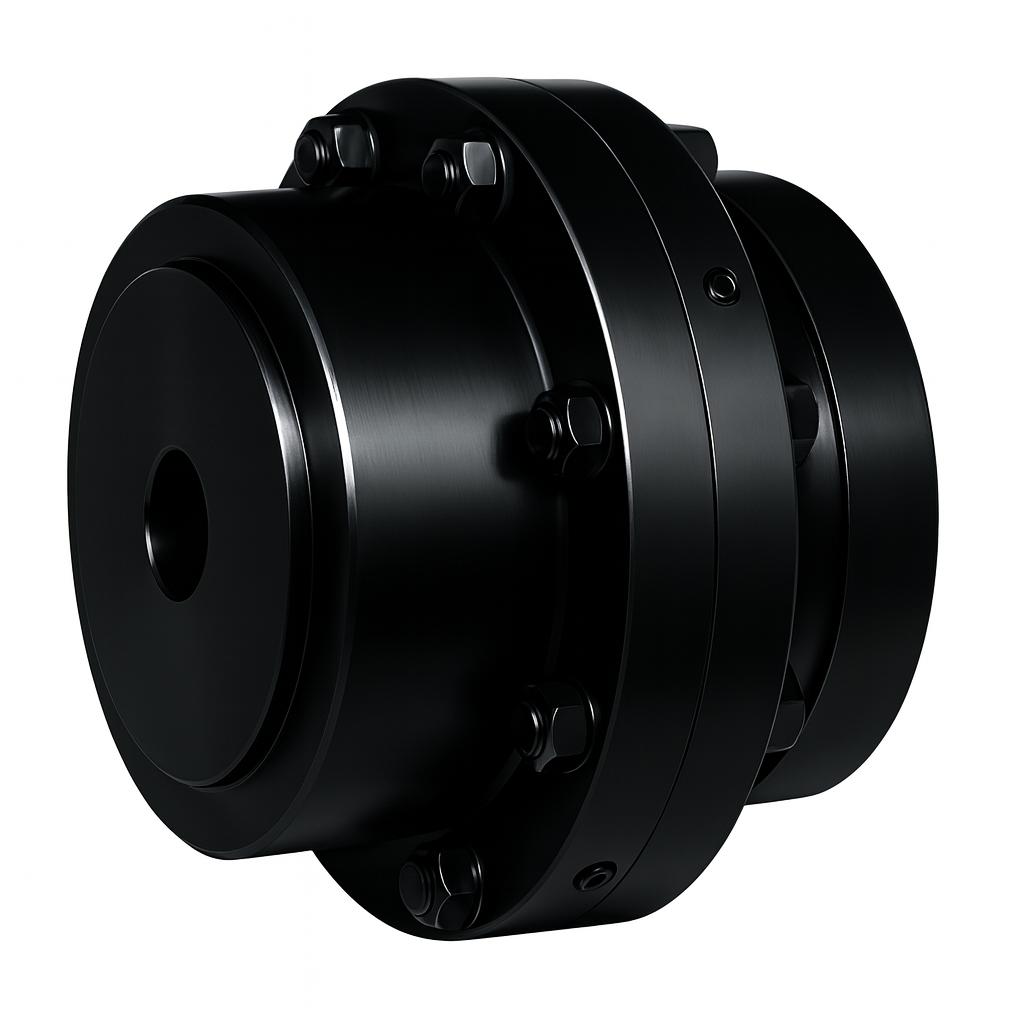

The FGC 2 Full Gear Coupling is a high-performance, flexible mechanical coupling designed to transmit maximum torque between rotating shafts. Built with precision-cut gear teeth and high-grade steel, FGC 2 offers exceptional durability, long service life, and smooth power transmission.
It is widely used in industrial machinery where reliability, alignment compensation, and heavy-duty performance are required.
Engineered to handle demanding torque loads while maintaining operational efficiency.
Made from strong alloy steel for superior durability in tough industrial environments.
Handles angular, radial, and axial misalignments effortlessly, reducing wear and extending equipment life.
Helps minimize vibration and noise, ensuring stable machinery performance.
With proper lubrication, FGC 2 delivers long, trouble-free service with minimal downtime.
The FGC 2 Full Gear Coupling is used across multiple industrial sectors, including:
Steel Rolling Mills
Cement Plants
Material Handling Equipment
Blowers, Fans & Compressors
Pumps & Mixers
Conveyor Drives
Heavy Machining Equipment
Power Transmission Systems
Its strong build and efficient torque transmission make it ideal for both medium and heavy-duty industrial applications.
Get durable, high-performance FGC 2 Gear Couplings with fast delivery and competitive prices.
Contact us today for a free quote and technical assistance!
