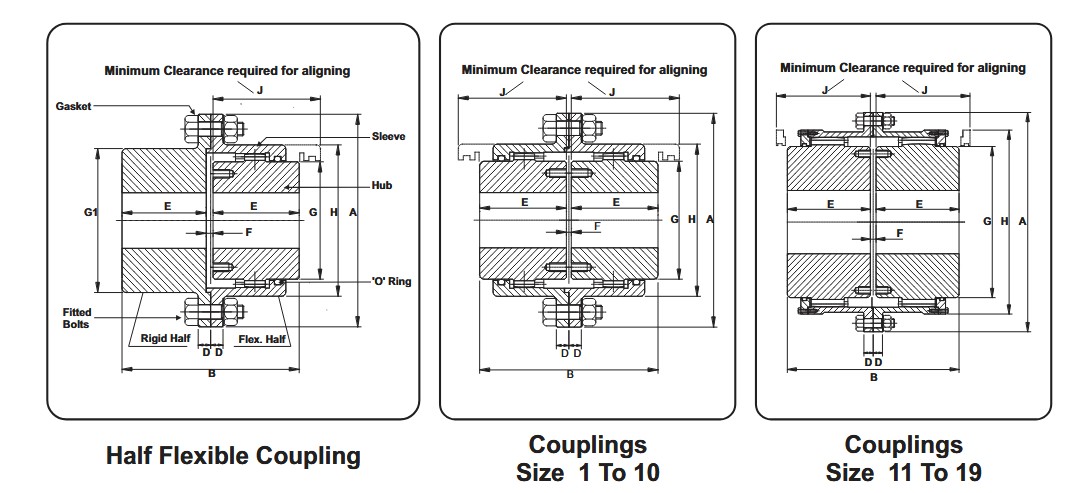

| Coupling No / Size | Power at 100 rpm (kW) | Maximum Torque (Nm) | Hub Bore (mm) | Dimensions (mm) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Min. | Max Flex | Max Rigid | A | B | D | E | F | G | G1 | H | J | ||||
| FGC 1 | 11.5 | 1100 | 14 | 55 | 60 | 170 | 115 | 17 | 55 | 5 | 78 | 90 | 110 | 65 | |

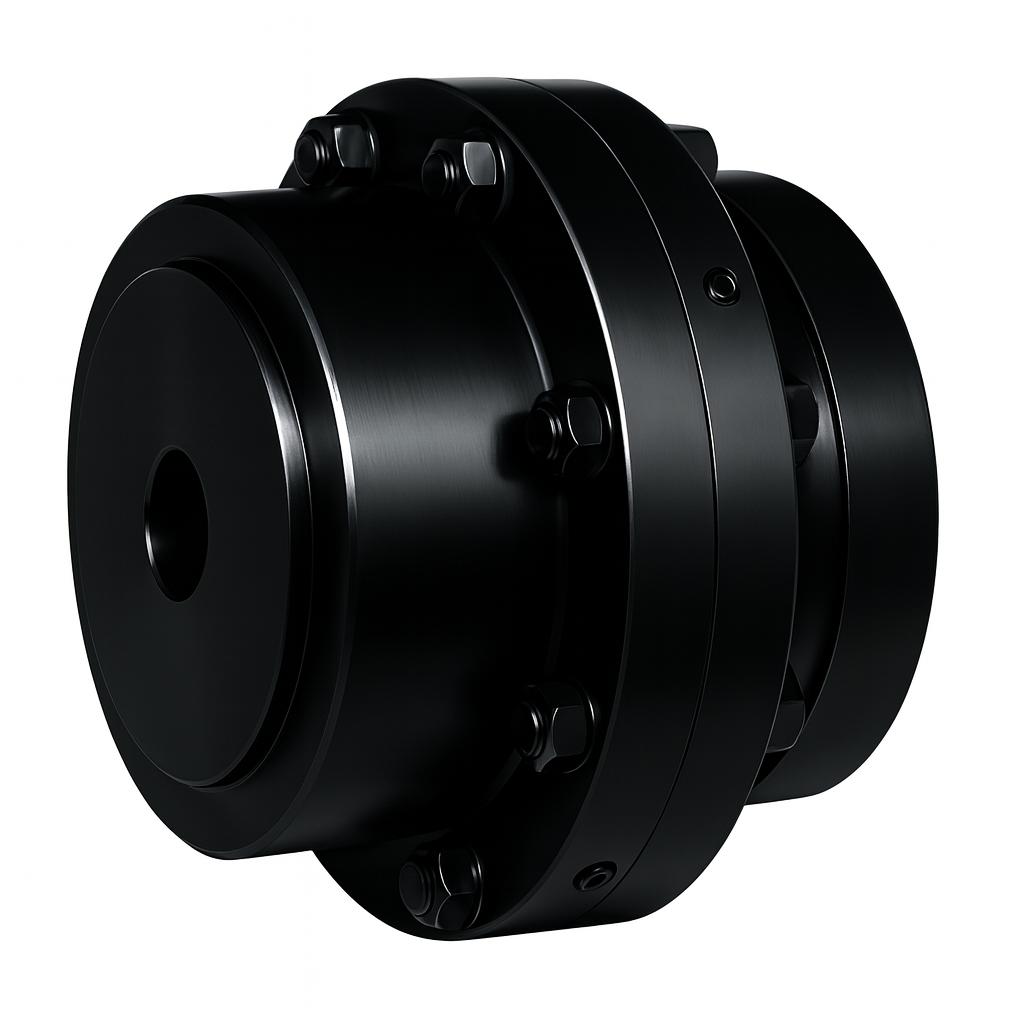

FGC 1 gear couplings are widely used in heavy-duty industrial systems where strength, durability, and long life are critical. They are easy to install, require minimal maintenance, and operate effectively even in harsh working environments.
High Torque Capacity – Designed to handle heavy loads and continuous operation.
Excellent Misalignment Handling – Compensates angular, axial, and parallel misalignment between shafts.
Shock & Vibration Absorption – Reduces noise and protects equipment from sudden load fluctuations.
High Durability – Manufactured using premium alloy steel for long service life.
Compact & Efficient Design – Offers high power transmission in a small footprint.
Low Maintenance – Requires minimal lubrication and provides long-term reliable performance.
Enhanced Operational Safety – Reduces stress on connected machinery, preventing premature breakdowns.
The FGC 1 Full Gear Coupling is ideal for various industrial applications, including:
Pumps and Compressors
Cooling Towers and Power Plants
Blowers, Fans, and Exhaust Systems
Conveyors & Material Handling Equipment
Steel Plants & Rolling Mills
Chemical, Paper & Cement Industries
Agitators, Mixers & Industrial Drives
Mining & Heavy Machinery
Its ability to handle high torque and misalignment makes it a preferred choice for demanding industrial operations.
